9 · Optimized kernels, dispatch, and operator fusion

The first eight tutorials are about expressing mathematics. This one is about the layers that make that mathematics run fast without changing how you write it — and that all stay out of your way until you ask for them:

• Optimized-kernel dispatch (ADR-016) — route an operation to the most efficient bit-exact array implementation (one batched matmul instead of a per-block loop, for example). It is off by default: your results never change, and a fast path is taken only when you opt in and it is provably equivalent.

• Lazy operator algebra and fusion (ADR-021) — simplify an operator expression and multiply operators together where possible (collapse A @ B @ C of dense operators into one matrix). Cheap rewrites happen automatically at construction; materializing fusions are an explicit fuse() call.

• Caching the materialized form (ADR-022) — when a fold has to build an array from its operands (stacking K blocks for one batched matmul), build it once and reuse it across applies instead of rebuilding every call.

None of these touch the matrix-free contract: a matrix-free operator is never silently turned into a dense one.

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
from scipy.linalg import block_diag
import spacecore as sc

BLUE, INDIGO, CYAN, SLATE = "#2563eb", "#4338ca", "#0891b2", "#475569"
mpl.rcParams.update({"figure.dpi": 110, "axes.spines.top": False, "axes.spines.right": False})

ctx = sc.Context(sc.NumpyOps(), dtype=np.float64)
rng = np.random.default_rng(0)

1 · Two kernel layers

spacecore.kernels keeps optimization logic out of the operator classes and splits it in two:

• Core kernels are the check-free bodies of apply/rapply/… They are bound to each operator once, at class-definition time, and are always on the default path — there is nothing to enable.

• Benchmarked specs are heavier fast paths (a batched matmul over uniform dense blocks, an algebraic short-circuit) described by a KernelSpec. They are routed by a single dispatcher, and dispatch is off by default.

Let’s build an operator the dispatcher knows a fast path for: a block-diagonal operator whose blocks are all the same-shape dense matrices.

n, K = 6, 4
X = sc.DenseCoordinateSpace((n,), ctx)
block_mats = [rng.standard_normal((n, n)) for _ in range(K)]
blocks = tuple(sc.DenseLinOp(ctx.asarray(M), X, X, ctx) for M in block_mats)

A = sc.BlockDiagonalLinOp.from_operators(blocks)   # K independent dense blocks
x = tuple(ctx.asarray(rng.standard_normal(n)) for _ in range(K))   # a tree element is just a tuple

y = A.apply(x)            # the default path (core kernel: a per-block loop)
print("blocks      :", K, "x", (n, n))
print("output parts:", [tuple(np.asarray(yi).shape) for yi in y])

blocks      : 4 x (6, 6)
output parts: [(6,), (6,), (6,), (6,)]

Turning dispatch on

The dispatcher has three modes, set process-globally or — better — for an enclosing scope with the dispatch_mode context manager:

• "off" (default) — always run the plain inline path.

• "on" — route to the applicable optimized spec (here: stack the blocks and issue one batched matmul instead of K).

• "verify" — run both the optimized and the inline path and assert they agree bit-for-bit, raising on any mismatch. This is the safety net you run in tests/CI before trusting a key.

Because every auto-routable spec is required to be exactly equivalent (rtol == atol == 0), "on" is bit-identical to "off" — it is faster, not different.

from spacecore.kernels import dispatch_mode

y_off = A.apply(x)                       # default
with dispatch_mode("on"):
    y_on = A.apply(x)                    # routed to the batched-matmul spec
with dispatch_mode("verify"):
    y_ver = A.apply(x)                   # runs both, asserts agreement

exact = all(np.array_equal(np.asarray(a), np.asarray(b)) for a, b in zip(y_off, y_on))
print("on  is bit-exact to off :", exact)
print("verify mode agreed      :", y_ver is not None)

on  is bit-exact to off : True
verify mode agreed      : True

Why off by default — the rails

Routing to a fast path is only safe behind a set of rails, all enforced by the KernelSpec contract:

• Exactness — only specs with rtol == atol == 0 are auto-routed.

• A memory gate — a materializing fast path (one that allocates extra, like stacking K block matrices) carries a shape-only cost estimate, and the dispatcher selects it only when that estimate fits the backend’s free-memory budget. No estimate, no fuse; no budget, no fuse.

• Matrix-free safety — a matrix-free operator is never silently materialized.

Each operation family the dispatcher knows about is a dispatch key; many specs can register under one key, and the dispatcher picks the highest-priority applicable one. Here is the live catalog:

from spacecore.kernels import registry

for key in sorted(registry.dispatch_keys()):
    names = [s.name for s in registry.dispatch_candidates(key)]
    print(f"{key:34s} -> {', '.join(names)}")

linop.block_diagonal.apply         -> block-diagonal-uniform-dense-batched
linop.block_diagonal.rapply        -> block-diagonal-uniform-dense-batched-rapply
linop.block_diagonal.rvapply       -> block-diagonal-uniform-dense-batched-rvapply
linop.block_diagonal.vapply        -> block-diagonal-uniform-dense-batched-vapply
linop.composed.apply               -> composed-zero-annihilation, composed-identity-elision
linop.stacked.apply                -> stacked-uniform-dense-batched-apply
linop.sum_to_single.rapply         -> sum-to-single-uniform-dense-batched-rapply

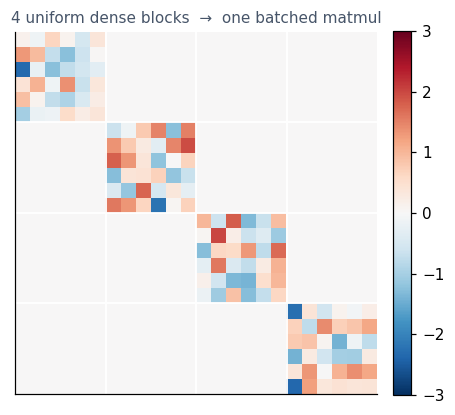

The block-diagonal heatmap below is the structure the fast path exploits: K independent dense blocks on the diagonal, all the same shape, are exactly the case a single batched matmul handles in one backend call.

dense_blockdiag = block_diag(*block_mats)
fig, ax = plt.subplots(figsize=(4.2, 4.2))
im = ax.imshow(dense_blockdiag, cmap="RdBu_r", vmin=-3, vmax=3)
ax.set_title(f"{K} uniform dense blocks  →  one batched matmul", fontsize=10, color=SLATE)
for i in range(1, K):
    ax.axhline(i * n - 0.5, color="white", lw=1.2)
    ax.axvline(i * n - 0.5, color="white", lw=1.2)
ax.set_xticks([]); ax.set_yticks([])
fig.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
plt.tight_layout(); plt.show()

2 · Lazy operator algebra and fuse()

Operator expressions are lazy: A @ B, A + B, c * A, A.H build a small tree, evaluating nothing until you apply it. Simplification has two tiers.

Tier 1 — automatic, at construction. Cheap, local rewrites happen the moment you build the expression: an identity factor disappears, a zero map collapses the product, nested scalars fold. These cost nothing and are always applied.

M1 = sc.DenseLinOp(ctx.asarray(rng.standard_normal((n, n))), X, X, ctx)
I  = sc.IdentityLinOp(X, ctx)

print("M1 @ I  is  M1 :", (M1 @ I) is M1)          # identity elided at construction
print("type of 2*(3*M1):", type(2.0 * (3.0 * M1)).__name__,
      "-> one ScaledLinOp with scalar", (2.0 * (3.0 * M1)).scalar)

M1 @ I  is  M1 : True
type of 2*(3*M1): ScaledLinOp -> one ScaledLinOp with scalar 6.0

Tier 2 — explicit, with ``fuse()``. Multiplying operators together is a materializing rewrite, so it is something you ask for. fuse() collapses each maximal run of dense operators into a single DenseLinOp holding the matrix product — the whole chain becomes one matrix.

Fusing reassociates the arithmetic (a matrix product, then apply, differs at the last bit from applying in sequence), so the result is equal up to rounding, not bit-for-bit. It is adjoint-consistent on any geometry — including non-Euclidean — because the shared middle-space Riesz maps cancel.

M2 = sc.DenseLinOp(ctx.asarray(rng.standard_normal((n, n))), X, X, ctx)
M3 = sc.DenseLinOp(ctx.asarray(rng.standard_normal((n, n))), X, X, ctx)

expr  = M1 @ M2 @ M3                 # a lazy composition tree
fused = expr.fuse()                  # one DenseLinOp: M1 @ M2 @ M3 as a single matrix

xv = ctx.asarray(rng.standard_normal(n))
print("before fuse :", type(expr).__name__)
print("after  fuse :", type(fused).__name__)
print("same action :", np.allclose(np.asarray(fused.apply(xv)), np.asarray(expr.apply(xv))))

before fuse : ComposedLinOp
after  fuse : DenseLinOp
same action : True

The matrix-free rail

fuse() only multiplies operators that already hold a cheap matrix. A matrix-free operator — defined by callables, with no stored matrix — is left untouched: it stays a lazy leaf and simply breaks the fusible run, so its matrix-free contract is preserved.

If you genuinely want to densify a matrix-free operand — accepting the cost and giving up the matrix-free property — that is an explicit opt-in: fuse(materialize=True).

Mf = sc.MatrixFreeLinOp(lambda v: 2.0 * v, lambda v: 2.0 * v, X, X, ctx)  # matrix-free

print("(M1 @ Mf).fuse()                 ->", type((M1 @ Mf).fuse()).__name__,
      " (matrix-free kept lazy)")
print("(M1 @ Mf).fuse(materialize=True) ->", type((M1 @ Mf).fuse(materialize=True)).__name__,
      " (explicitly densified)")

(M1 @ Mf).fuse()                 -> ComposedLinOp  (matrix-free kept lazy)
(M1 @ Mf).fuse(materialize=True) -> DenseLinOp  (explicitly densified)

3 · How the two layers compose

Fusion changes what an operator is; dispatch reads that structure the next time you apply. So they cooperate: fusing a block whose definition was a composition of dense operators turns it into a single dense block — which then makes the enclosing block-diagonal operator eligible for the batched-matmul fast path.

# A block-diagonal whose blocks are themselves compositions of dense operators.
composed_blocks = tuple(
    sc.DenseLinOp(ctx.asarray(rng.standard_normal((n, n))), X, X, ctx)
    @ sc.DenseLinOp(ctx.asarray(rng.standard_normal((n, n))), X, X, ctx)
    for _ in range(K)
)
B = sc.BlockDiagonalLinOp.from_operators(composed_blocks)
B_fused = B.fuse()                  # each block collapses to one DenseLinOp

print("block type before fuse:", type(B.parts[0]).__name__)
print("block type after  fuse:", type(B_fused.parts[0]).__name__,
      "(now foldable by the block-diagonal dispatch spec)")
print("same action           :",
      all(np.allclose(np.asarray(a), np.asarray(b))
          for a, b in zip(B.apply(x), B_fused.apply(x))))

block type before fuse: ComposedLinOp
block type after  fuse: DenseLinOp (now foldable by the block-diagonal dispatch spec)
same action           : True

4 · The performance payoff

The sections above showed the two layers are correct. Here is why you reach for them — measured on this machine, on the NumPy backend.

import timeit

def per_apply_us(fn, number=200, repeat=9):
    """Average per-apply time in microseconds.

    Times ``number`` back-to-back calls in each of ``repeat`` batches and returns
    the **mean** over all ``repeat x number`` timed calls (after a warm-up), so the
    figure is averaged over many runs rather than read off a single measurement.
    """
    fn()                                    # warm up (allocator, caches, any JIT)
    batches = timeit.repeat(fn, number=number, repeat=repeat)
    return float(np.mean(batches)) / number * 1e6

n_big, depth = 384, 16
Xb = sc.DenseCoordinateSpace((n_big,), ctx)
factors = [sc.DenseLinOp(ctx.asarray(rng.standard_normal((n_big, n_big))), Xb, Xb, ctx)
           for _ in range(depth)]
chain = factors[0]
for f in factors[1:]:
    chain = chain @ f                       # a lazy depth-16 composition
fused = chain.fuse()                        # one DenseLinOp: the product matrix
xb = ctx.asarray(rng.standard_normal(n_big))

t_lazy  = per_apply_us(lambda: chain.apply(xb))
t_fused = per_apply_us(lambda: fused.apply(xb))
print(f"lazy chain (depth {depth}) : {t_lazy:7.1f} us / apply   ({depth} matvecs)")
print(f"fused (one matmul)      : {t_fused:7.1f} us / apply   (1 matvec)")
print(f"speedup per apply       : {t_lazy / t_fused:5.1f}x")

lazy chain (depth 16) :   221.3 us / apply   (16 matvecs)
fused (one matmul)      :    20.2 us / apply   (1 matvec)
speedup per apply       :  11.0x

Fusion amortizes a deep composition. Applying the lazy chain walks every factor on every call — depth matrix–vector products. fuse() precomputes the single product matrix once, so each later apply is one matvec. The wall-clock gain tracks that depth → 1 reduction once the operator is large enough for the matrix multiply — not the fixed per-call validation — to dominate.

This is the classic fuse once, apply many win: in a solver that applies the same operator hundreds of times, you pay the product once and collect the speedup on every iteration. It holds on any backend — it is simply fewer operations per apply.

m = 48
Xm = sc.DenseCoordinateSpace((m,), ctx)
bd_blocks = tuple(sc.DenseLinOp(ctx.asarray(rng.standard_normal((m, m))), Xm, Xm, ctx)
                  for _ in range(8))
Abd = sc.BlockDiagonalLinOp.from_operators(bd_blocks)
xbd = tuple(ctx.asarray(rng.standard_normal(m)) for _ in range(8))

with dispatch_mode("off"):
    t_doff = per_apply_us(lambda: Abd.apply(xbd))     # per-block loop
with dispatch_mode("on"):
    t_don = per_apply_us(lambda: Abd.apply(xbd))      # one batched matmul
print(f"dispatch off : {t_doff:7.1f} us / apply   (per-block loop)")
print(f"dispatch on  : {t_don:7.1f} us / apply   (one batched matmul)")
print(f"ratio        : {t_doff / t_don:5.2f}x   (> 1 means the fold won here)")

dispatch off :   117.0 us / apply   (per-block loop)
dispatch on  :   127.5 us / apply   (one batched matmul)
ratio        :  0.92x   (> 1 means the fold won here)

Dispatch: measure before you trust. The batched-matmul fold replaces K backend calls with one. On CPU that is typically break-even — often a little slower — because NumPy’s per-block loop is already efficient, and the full dispatched path pays a small per-call selection cost (an applicability scan and a free-memory query for the gate) on top of the fold itself. The same fold is a decisive win on a GPU, where K separate kernel launches dominate and one batched launch replaces them.

That asymmetry is exactly why dispatch ships off by default and a key is turned on only once a benchmark proves it wins on your backend — the fast path is always available, exact, and gated, never assumed.

The fold has one more cost worth isolating, though — the stacking of the K blocks it has to build before that single matmul. That is what the next section is about.

5 · Caching the materialized fold (ADR-022)

To issue one matmul, the batched fold first stacks the K block matrices into a single (K, m, m) array. The naïve fold rebuilds that stack on every apply — even though the blocks never change. On CPU that re-stack is roughly half the fold’s time, and it is a big part of why the fold struggles to beat the plain loop above.

That stacked array depends only on the (fixed) blocks, so SpaceCore builds it once and reuses it (ADR-022). The cache lives on the operator’s parts, is built lazily the first time a fold actually routes, and keeps one slot per direction (_A2 for apply, _A2H for the adjoint, …). It is a purely derived value: excluded from operator identity, dropped and rebuilt empty after a pytree round-trip, and never built for a matrix-free block — a speed property of this operator instance, nothing more.

First, watch the cache appear on its own — empty until a fold routes, then holding the stacked (K, m, m) block array:

# A block-diagonal with enough uniform blocks that the fold's stacking cost bites.
Kc, mc = 24, 48
Xc = sc.DenseCoordinateSpace((mc,), ctx)
cache_blocks = tuple(sc.DenseLinOp(ctx.asarray(rng.standard_normal((mc, mc))), Xc, Xc, ctx)
                     for _ in range(Kc))
Ac = sc.BlockDiagonalLinOp.from_operators(cache_blocks)
xc = tuple(ctx.asarray(rng.standard_normal(mc)) for _ in range(Kc))

print("stack cache before a dispatched apply :", dict(Ac.parts._stack_cache))
with dispatch_mode("on"):
    Ac.apply(xc)                                   # first routed apply builds the (K, m, m) stack
print("stack cache after  a dispatched apply :",
      {k.__name__: tuple(np.asarray(v).shape) for k, v in Ac.parts._stack_cache.items()})

stack cache before a dispatched apply : {}
stack cache after  a dispatched apply : {'_A2': (24, 48, 48)}

# Measure the stacking cost in isolation, by calling the block-diagonal fold
# kernel directly — this strips away the dispatcher's per-call selection overhead
# (the separate ADR-016 tax above) and leaves just the materialization.
from spacecore.kernels.specs.block_batched import (
    block_batched_optimized, block_diagonal_apply_generic,
)

restack_every = tuple(cache_blocks)     # a plain tuple  -> rebuilds the (K, m, m) stack every apply
cached_parts  = Ac.parts                # CachedStackParts -> stack built once, then reused (ADR-022)

t_loop    = per_apply_us(lambda: block_diagonal_apply_generic(restack_every, xc))
t_restack = per_apply_us(lambda: block_batched_optimized(restack_every, xc))
t_cached  = per_apply_us(lambda: block_batched_optimized(cached_parts,  xc))

print(f"per-block loop                : {t_loop:7.1f} us / apply")
print(f"fold, re-stack every apply    : {t_restack:7.1f} us / apply   (rebuilds the (K, m, m) stack)")
print(f"fold, stack cached (ADR-022)  : {t_cached:7.1f} us / apply   (stack built once, reused)")
print(f"  re-stack removed            : {t_restack - t_cached:7.1f} us  "
      f"({100 * (t_restack - t_cached) / t_restack:.0f}% of the uncached fold)")
print(f"  uncached fold vs loop       : {t_loop / t_restack:5.2f}x   (re-stacking, the fold loses)")
print(f"  cached fold   vs loop       : {t_loop / t_cached:5.2f}x   (caching tips it to a win)")

per-block loop                :    22.8 us / apply
fold, re-stack every apply    :    35.1 us / apply   (rebuilds the (K, m, m) stack)
fold, stack cached (ADR-022)  :    18.2 us / apply   (stack built once, reused)
  re-stack removed            :    16.9 us  (48% of the uncached fold)
  uncached fold vs loop       :  0.65x   (re-stacking, the fold loses)
  cached fold   vs loop       :  1.25x   (caching tips it to a win)

Caching is what tips a materializing fold to a win. Re-stacking the blocks on every apply, the fold loses to NumPy’s per-block loop; cache that one-time stack and the same fold pulls ahead. That is the ADR-022 lever — turning a repeated per-call materialization into a build-once-apply-many value, exactly the fuse-once, apply-many idea from §4 applied to the dispatch fold. It matters even more on accelerators, where the batched launch is the win and the one-time stack is negligible against many applies.

And like every fast path in this tutorial, it changes nothing you can observe: the cached fold is bit-identical (verify mode still passes), the cache is excluded from operator identity, and it is rebuilt empty after a pytree round-trip — a pure speed property layered under a result that never moves.

Takeaways

• Dispatch (ADR-016) picks the fastest bit-exact array kernel for an operation. It is off by default, gated by exactness and a memory budget, and never materializes a matrix-free operand. Turn it on with dispatch_mode("on") and prove it with dispatch_mode("verify").

• Fusion (ADR-021) simplifies the operator expression. Cheap identities fold automatically at construction; fuse() multiplies dense operators into one matrix (equal up to rounding, adjoint-consistent on any geometry). It never densifies a matrix-free operand unless you pass materialize=True.

• Caching (ADR-022) removes the fold’s repeated work: the (K, m, m) block stack is built once and reused across applies, which is what tips a materializing fold from break-even to a win once it routes. The cache is derived — excluded from identity, rebuilt empty after a pytree round-trip, never built for a matrix-free block.

• Performance: fusion is a structural win on any backend — fewer operations per apply, a multi-× speedup for a deep chain applied repeatedly. The dispatch batched folds are gated on a per-backend benchmark (a GPU/accelerator win on kernel-launch count), and caching the one-time stack is what makes them competitive on CPU once routed.

• The three compose: fuse() produces dense operators that dispatch can accelerate, and the fold it routes to caches its materialized stack.

Every one of these is opt-in or invisible by design — the default path always gives you the plain, predictable result, and the fast paths are there when you ask and only when they’re provably equivalent.
